Description

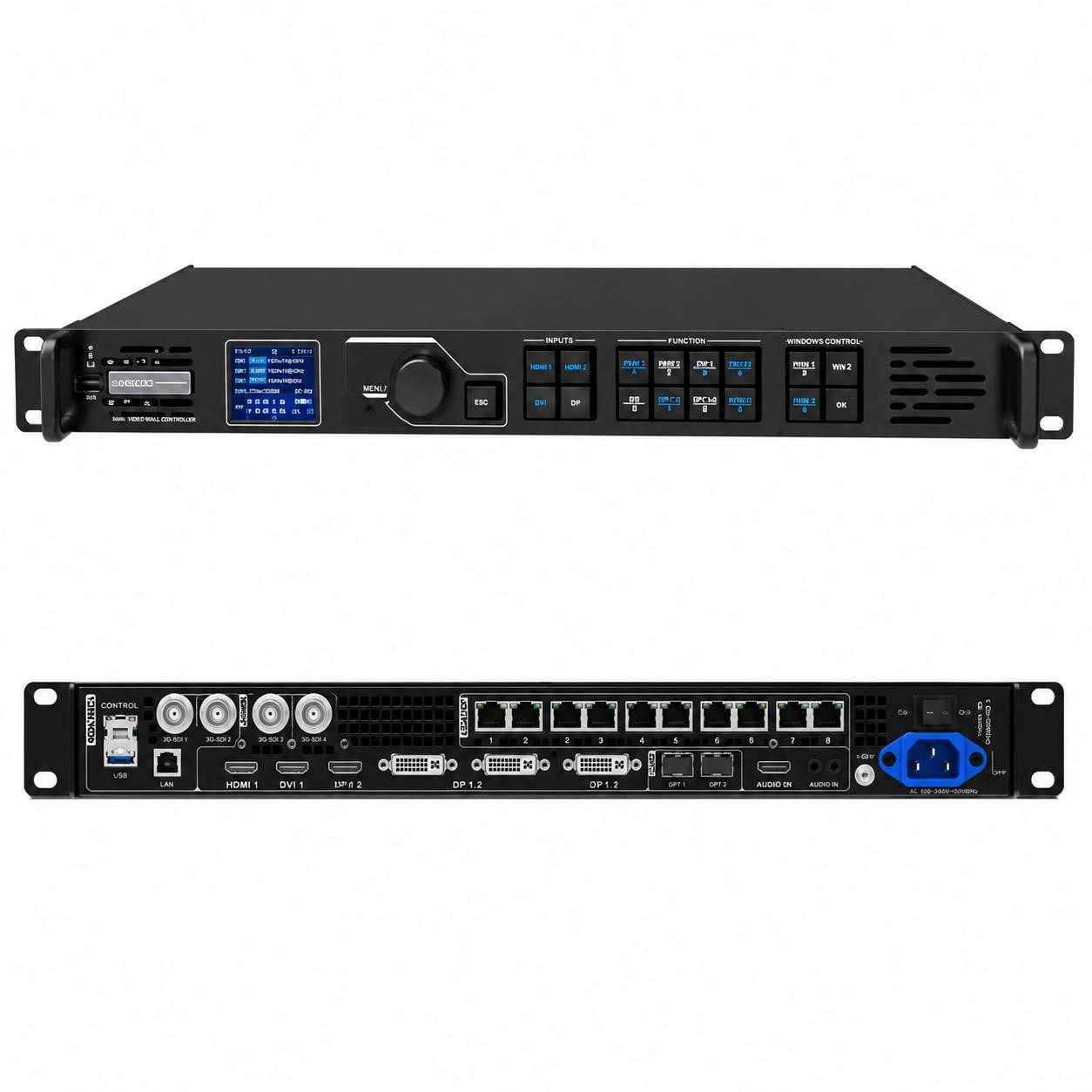

The NovaStar VX1000 All-in-One LED Video Controller is a professional-grade video processor and LED sending controller designed for medium to large LED display systems. With a maximum loading capacity of 6.5 million pixels, 10 Gigabit Ethernet outputs, and 2 × 10G optical fiber outputs, it delivers exceptional performance for rental LED screens, stage productions, broadcast studios, and fixed LED installations.
The VX1000 supports 4K × 1K @ 60Hz video input, 3 independent display layers, free image scaling, seamless switching, ultra-low latency, and advanced image enhancement technologies including pixel-level brightness and chroma calibration and color management. Compatible with NovaLCT and V-Can software, it provides flexible screen configuration, preset management, and reliable control for demanding LED display applications.
| Product Type |
All-in-One LED Video Controller |
| Loading Capacity |
6.5 Million Pixels |
| Maximum Width |
10,240 Pixels |
| Maximum Height |
8,192 Pixels |
| Ethernet Outputs |
10 × Gigabit Ethernet Ports |
| Fiber Outputs |
2 × 10G Optical Fiber Outputs |
| HDMI Loop |
1 × HDMI 1.4 Loop |
| SDI Input |
1 × 3G-SDI Input |
| SDI Loop |
1 × 3G-SDI Loop Output |
| Layers |
Up to 3 Independent Layers |
| Scaling |
Free Scaling & Seamless Switching |
| Input Resolution |
Up to 4K × 1K @ 60Hz |
| Working Modes |
Video Controller, Fiber Converter, Bypass |
| Low Latency |
Supported (1-frame ultra-low latency) |
| HDR |
Supported (with compatible systems) |
| Pixel-Level Brightness Calibration |
Supported |
| Pixel-Level Chroma Calibration |
Supported |
| Color Management |
Supported |
| Presets |
10 User-Defined Presets |
| Power Supply |
AC 100–240V, 50/60Hz |
| Operating Temperature |
0°C to +45°C |
| Storage Temperature |
-20°C to +70°C |
| Certifications |
CE, FCC, UL, CB, UKCA, EAC, KC, RCM |
