Description

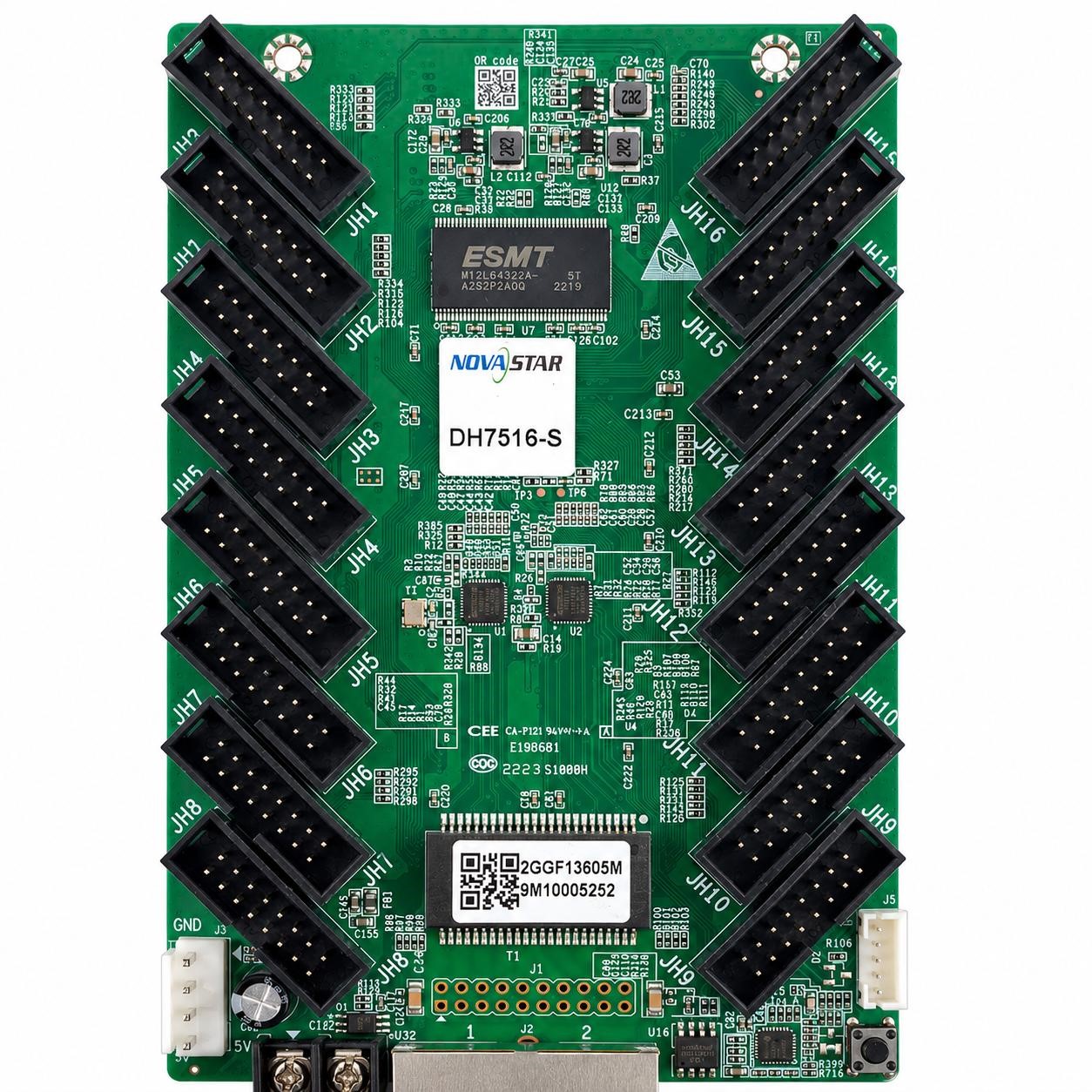

The NovaStar DH7516 LED Receiving Card is a professional-grade engineered for high-performance indoor and outdoor LED display systems. Equipped with 16 HUB75E connectors, it supports up to 32 groups of parallel RGB data and provides a maximum loading capacity of 512 × 512 pixels, making it ideal for high-resolution LED cabinets and large-scale video walls.
The DH7516 features advanced image enhancement technologies including brightness calibration, color calibration, individual RGB gamma adjustment, 3D display support, and 90° image rotation. Built-in temperature and voltage monitoring, loop backup, and dual firmware backup improve reliability and simplify maintenance in demanding commercial installations.
Compatible with NovaLCT software, the NovaStar dh7516 is an excellent choice for rental LED displays, fixed installations, digital signage, advertising screens, broadcast studios, and professional LED video wall projects
| Maximum Load Capacity |
Up to 512 × 512 pixels |
| HUB Ports |
16 × HUB75E connectors |
| Parallel RGB Data |
Up to 32 groups |
| Input Voltage |
DC 3.8V–5.5V |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-25°C to +125°C |
| Humidity |
10%–90% RH (non-condensing) |
| Dimensions |
145.7 × 91.5 × 18.3 mm |
| Weight |
Approximately 100.9 g |
| Brightness Calibration |
Supported |
| Color Calibration |
Supported |
| RGB Individual Gamma Adjustment |
Supported |
| 90° Image Rotation |
Supported |
| Temperature Monitoring |
Supported |
| Voltage Monitoring |
Supported |
| Dual Program Backup |
Supported |
