Description

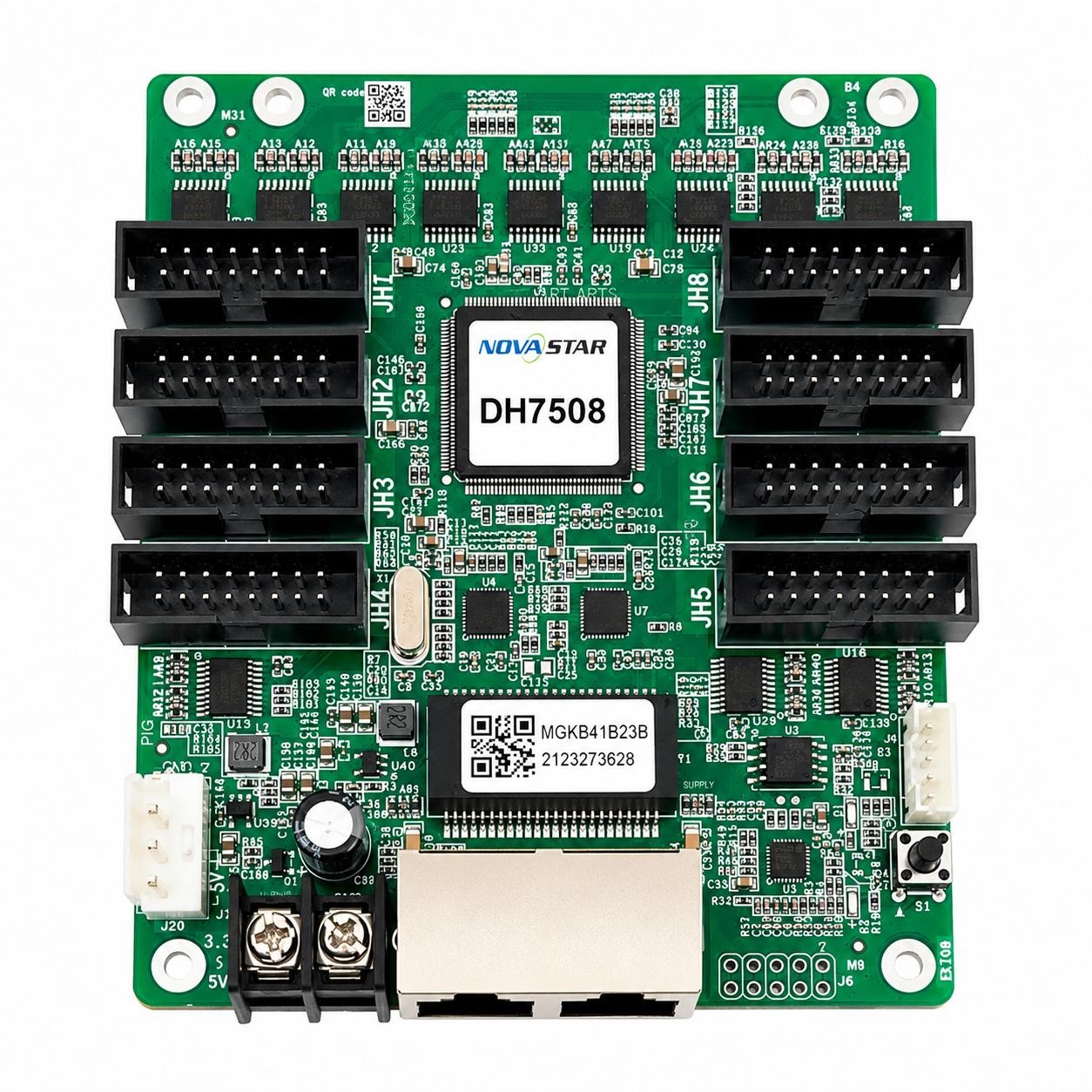

The NovaStar DH7508 LED Receiving Card is a professional receiver card designed for high-performance indoor and outdoor LED display applications. Equipped with 8 HUB75E interfaces, it supports up to 16 groups of RGB parallel data and a maximum loading capacity of 512 × 512 pixels (PWM driver IC), making it ideal for digital signage, rental LED screens, commercial displays, and fixed LED installations.
The DH7508 includes advanced image processing technologies such as pixel-level brightness and chroma calibration, RGB gamma adjustment, quick dark and bright line correction, 3D display support, and 90° image rotation, ensuring exceptional image quality and color consistency. Built-in temperature, voltage, and communication monitoring enhance system reliability, while compatibility with NovaLCT software simplifies configuration and maintenance
| Product Type |
LED Display Receiving Card |
| Maximum Loading Capacity |
512 × 512 pixels (PWM driver IC) / 512 × 384 pixels (Common driver IC) |
| Parallel RGB Data |
16 Groups |
| Input Voltage |
DC 3.8V–5.5V |
| Rated Power Consumption |
2.5W |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-25°C to +125°C |
| Operating Humidity |
10%–90% RH (Non-condensing) |
| Storage Humidity |
0%–95% RH (Non-condensing) |
| Dimensions |
95.5 × 109.1 × 17.9 mm |
| Pixel-Level Brightness Calibration |
Supported |
| Pixel-Level Chroma Calibration |
Supported |
| RGB Gamma Adjustment |
Supported |
| Quick Dark/Bright Line Adjustment |
Supported |
| 90° Image Rotation |
Supported |
| Temperature Monitoring |
Supported |
| Voltage Monitoring |
Supported |
| Communication Status Monitoring |
Supported |
| Mapping Function |
Supported |
| Certifications |
RoHS, EMC Class A |
