Description

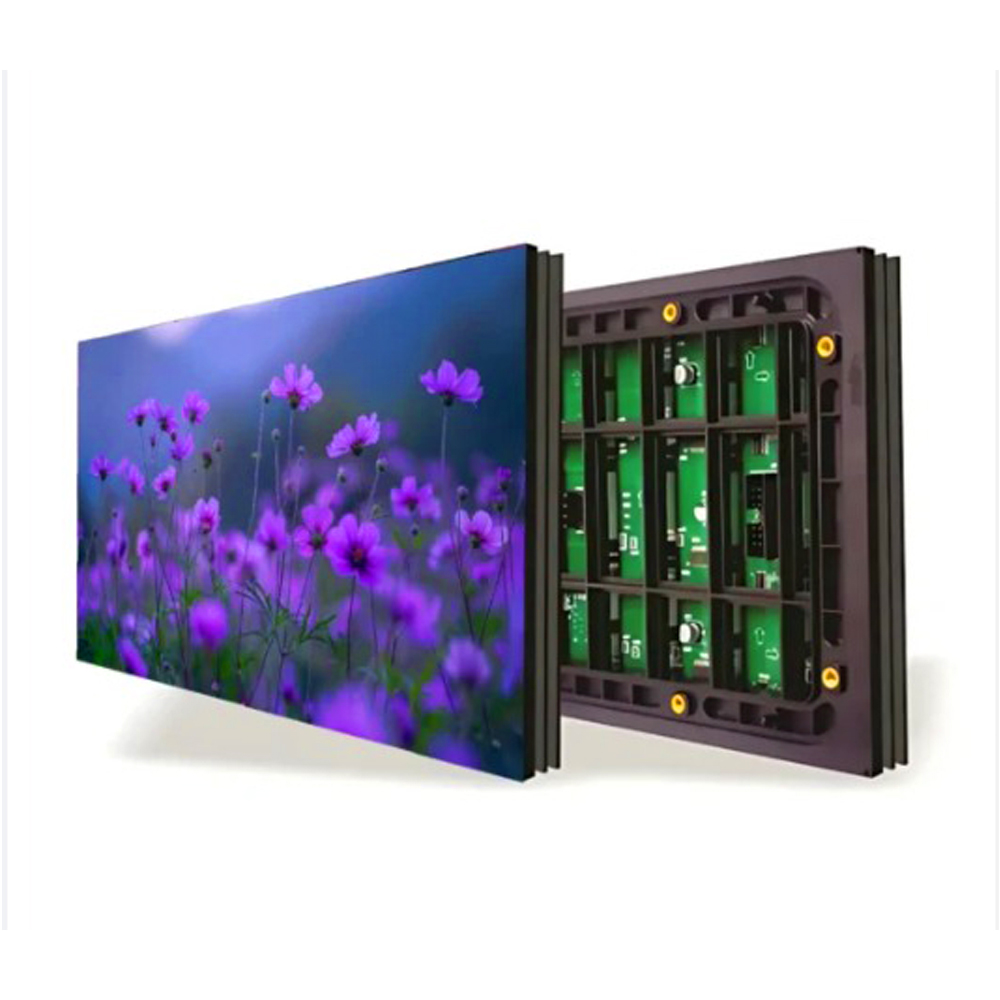

The P6 Outdoor LED Display Panel is a professional-grade full-color LED display designed to deliver bright, high-quality visuals for outdoor advertising and public communication. With a 6mm pixel pitch, it offers an excellent balance of image clarity and cost-effectiveness, making it ideal for medium to long viewing distances.
Engineered for continuous outdoor operation, the panel features high-brightness LEDs that provide outstanding visibility in direct sunlight. Its weather-resistant construction with IP65 front protection safeguards against rain, dust, and harsh environmental conditions, ensuring reliable performance throughout the year.
The display supports 3840Hz high refresh rate technology, producing smooth, flicker-free images and videos for live broadcasts, digital signage, sporting events, concerts, and commercial advertising. The lightweight die-cast aluminum cabinet simplifies installation and maintenance while enhancing durability and heat dissipation.
Compatible with leading LED control systems such as NovaStar and HUIDU , the All Outdoor LED Display Panel offers flexible content management and seamless integration into a wide range of digital display solutions.Typical commercial P6 outdoor LED displays use a 6 mm pixel pitch, 27,777 pixels/m² density, 192 × 192 mm modules, 960 × 960 mm cabinets, 5,500–8,000 nits brightness,
| Product Name |
P6 Outdoor LED Display Panel |
| LED Type |
SMD2727 (Outdoor Grade) |
| Pixel Density |
27,777 Pixels/m² |
| Module Resolution |
32 × 32 Pixels |
| Cabinet Size |
960 × 960 mm |
| Cabinet Resolution |
160 × 160 Pixels |
| Cabinet Material |
Die-Cast Aluminum |
| Viewing Angle |
Horizontal 160° / Vertical 140° |
| Recommended Viewing Distance |
6–60 m |
| Maximum Power Consumption |
≤800 W/m² |
| Average Power Consumption |
≤280–300 W/m² |
| Input Voltage |
AC 100–240V, 50/60Hz |
| Protection Rating |
IP65 Front / IP54 Rear |
| Operating Temperature |
-20°C to +60°C |
| Service Access |
Front or Rear Maintenance |
| Control System |
NovaStar / Colorlight / Linsn |
