Description

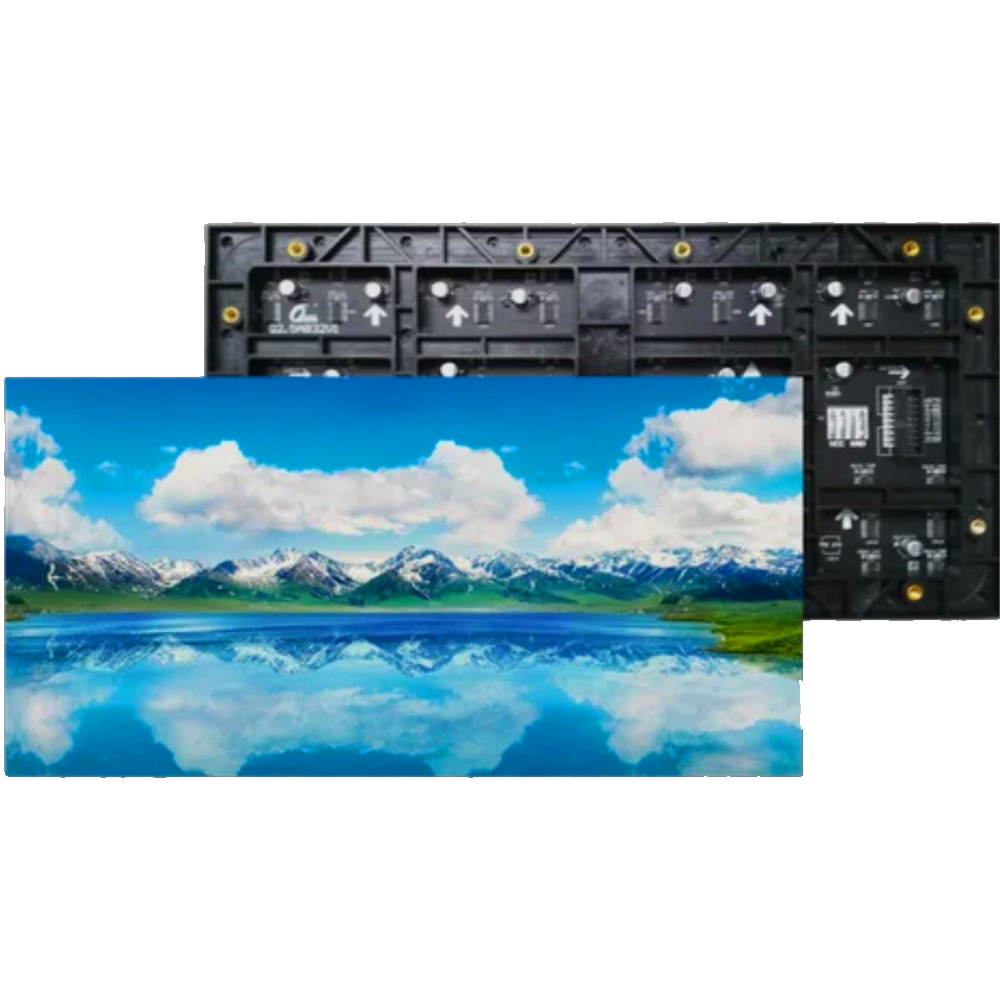

The P2.5 Indoor LED Display Panel is a high-definition fine-pitch LED display designed to deliver sharp visuals, vibrant colors, and seamless performance for professional indoor applications. With a 2.5mm pixel pitch, it offers an excellent balance between image quality and affordability, making it ideal for conference rooms, retail stores, corporate offices, auditoriums, shopping malls, control rooms, television studios, exhibition halls, and indoor digital signage.
Built with advanced SMD2121/SMD1515 LED technology, the P2.5 Indoor LED Display provides excellent color uniformity, wide viewing angles, and a high refresh rate of 3840Hz, ensuring smooth, flicker-free video playback. Its lightweight die-cast aluminum cabinet allows for precise installation and easy front maintenance, while its energy-efficient design supports reliable 24/7 operation.
Whether you’re displaying presentations, advertisements, live video, or promotional content, the P2.5 Indoor LED Display Panel delivers outstanding visual performance for commercial and professional environments The specifications above reflect common commercial P2.5 indoor LED display configurations, including a 2.5 mm pixel pitch, 320 × 160 mm modules, 128 × 64 pixel module resolution, 160,000 pixels/m² density, 800–1,000 nits brightness, and refresh rates up to 3840 Hz, although exact specifications vary by manufacturer High Resolution Conference Room Indoor LED Video Wall
| LED Type |
SMD2121 / SMD1515 Full Color |
| Pixel Density |
160,000 Pixels/m² |
| Module Resolution |
128 × 64 Pixels |
| Cabinet Size |
640 × 480 mm |
| Cabinet Material |
Die-Cast Aluminum |
| Brightness |
800–1,000 nits |
| Viewing Angle |
160° (H) / 140° (V) |
| Recommended Viewing Distance |
2.5–25 m |
| Maximum Power Consumption |
≤600 W/m² |
| Average Power Consumption |
≤200 W/m² |
| Input Voltage |
AC 100–240V, 50/60Hz |
| Protection Rating |
IP30 Front / IP20 Rear |
| Operating Temperature |
-10°C to +40°C |
| Operating Humidity |
10%–80% RH |
| Service Access |
Front Maintenance |
| Control System |
NovaStar / Colorlight / Linsn HUIDU |
