Description

P10 RGB Outdoor LED Display | Waterproof Full Color Digital Advertising Screen

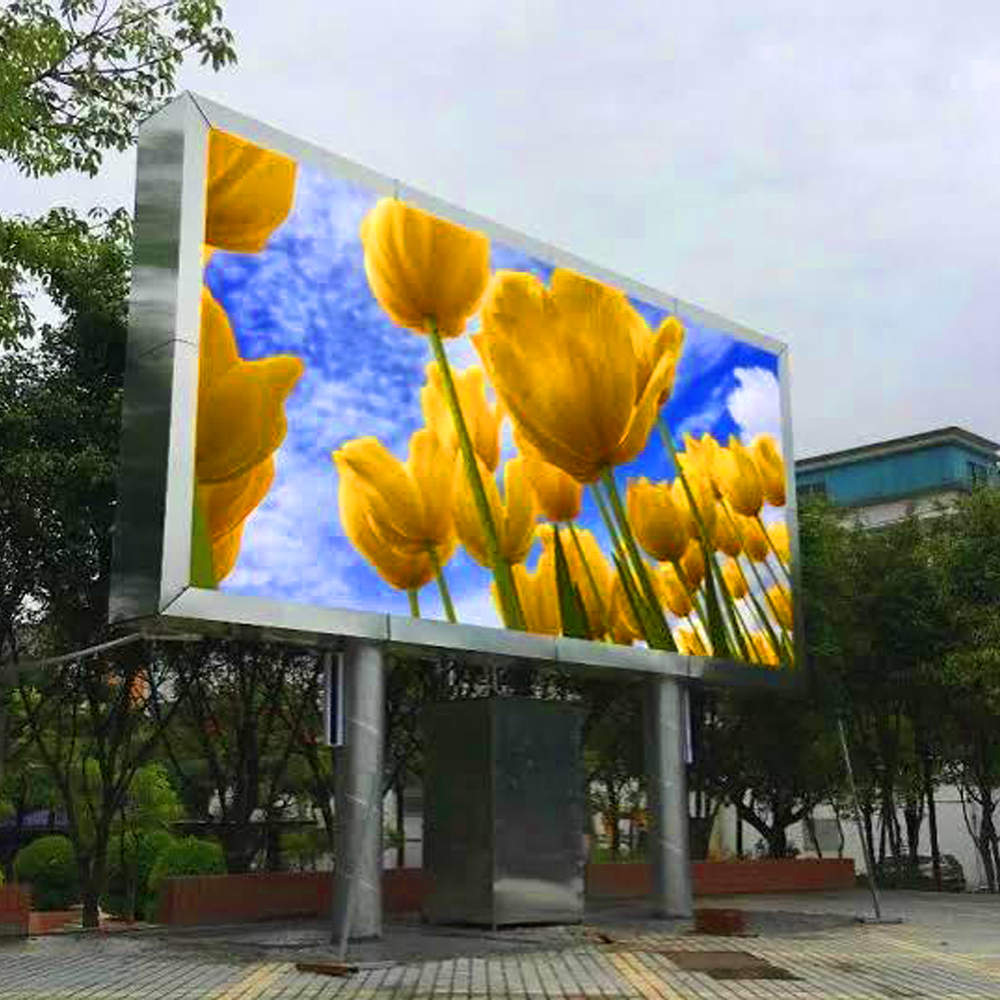

The P10 Outdoor LED Billboard Screen is a high-performance digital display solution designed for outdoor advertising, commercial branding, public information displays, and large-scale events. With a 10mm pixel pitch, this LED screen delivers bright, vibrant visuals that remain clear even in direct sunlight. Built with a weather-resistant design and high-brightness SMD LEDs, it provides reliable 24/7 performance in challenging outdoor environments. Typical P10 outdoor displays use a 10 mm pixel pitch, around 10,000 pixels/m², high brightness, and IP65 weather protection for outdoor durability.

P10mm Pixel Pitch for Long-Distance Viewing High Brightness for Daylight Visibility IP65 Waterproof & Dustproof Design Energy-Efficient SMD LED Technology High Refresh Rate for Smooth Video Playback Wide Viewing Angle with Excellent Color Uniformity Durable Cabinet for Harsh Outdoor Conditions Supports Front or Rear Maintenance Stable 24/7 Continuous Operation Suitable for Large Outdoor LED Video Walls

• Input Power Supply: AC 100–240V, 50/60Hz
• Module Operating Voltage: DC 5V
•  5V 40A or 5V 60A Switching Power Supply (depending on cabinet configuration)
• Maximum Power Consumption: Up to 800 W/m²
• Average Power Consumption: 250–320 W/m²
• Power Efficiency: High-efficiency switching power supply for stable 24/7 operation.

• 10mm Pixel Pitch
• High Brightness up to 6,000–8,500 nits
• Energy-Efficient LED Technology
• Long Lifespan of Up to 100,000 Hours
• Easy Front & Rear Maintenance
• Supports Video, Images, Text, Animations & Live Content
• Compatible with HDMI, DVI, VGA, USB, LAN & Cloud Control (depending on controller)
• Stable Performance for 24/7 Outdoor Operation


  Specification	Details
  Product Name	P10 RGB Outdoor LED Display
  Pixel Pitch	10mm
  LED Type	RGB Full Color
  Module Size	320 × 160 mm
  Pixel Density	10,000 dots/m²
  Brightness	6,000–8,500 nits
  Protection Level	IP65 Waterproof
  Viewing Distance	10–100 meters
  Viewing Angle	140°–160°
  Refresh Rate	Up to 3840Hz
  Lifespan	100,000 Hours
  Working Temperature	-20°C to +60°C
  Installation	Fixed Outdoor Installation
