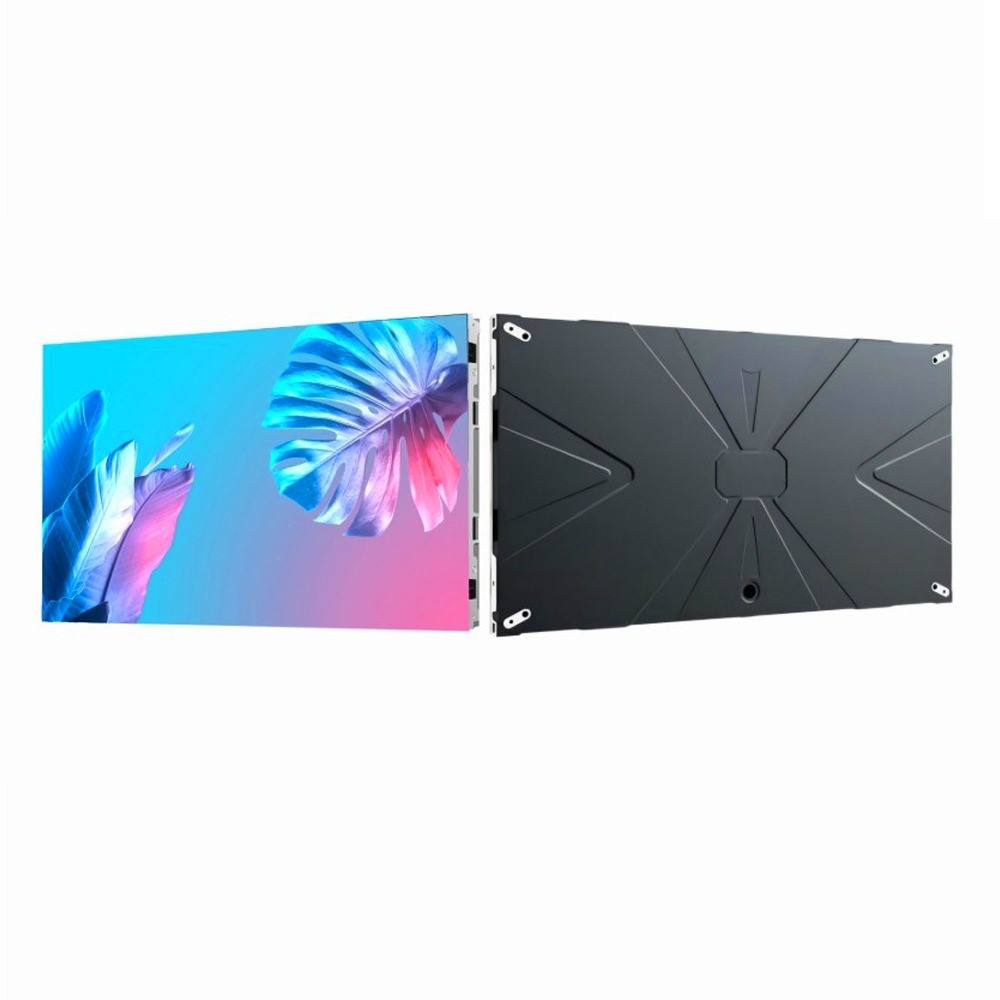

Description
The P1.8 COB Indoor LED Display Panel is a premium fine-pitch LED solution designed for boardrooms, control rooms, broadcasting studios, corporate lobbies, command centers, retail showrooms, and luxury indoor digital signage. Featuring advanced Flip-Chip COB (Chip-on-Board) technology, it delivers exceptional durability, ultra-high contrast, superior color uniformity, and outstanding image quality.
With a 1.875 mm pixel pitch, 3840Hz refresh rate, 160° wide viewing angle, and up to 20,000:1 contrast ratio, the display produces crystal-clear visuals for close viewing distances. The die-cast aluminum cabinet ensures lightweight installation, seamless alignment, and convenient front maintenance. COB technology also provides enhanced protection against dust, moisture, and accidental impact while extending the display’s operational lifespan beyond 100,000 hours.
| Product Name |
P1.8 COB Indoor LED Display Panel |
| LED Technology |
Flip-Chip COB (Chip-on-Board) |
| Pixel Density |
284,444 pixels/m² |
| Cabinet Size |
600 × 337.5 × 39–50 mm |
| Cabinet Resolution |
320 × 180 pixels |
| Cabinet Material |
Die-Cast Aluminum |
| Cabinet Weight |
4.5–5.0 kg |
| Contrast Ratio |
Up to 20,000:1 |
| Viewing Angle |
160° Horizontal / 160° Vertical |
| Color Temperature |
3000K–10000K Adjustable |
| Input Voltage |
AC 100–240V, 50/60Hz |
| Average Power Consumption |
150–180 W/m² |
| Maximum Power Consumption |
450 W/m² |
| Service Access |
Front Maintenance |
| Operating Temperature |
-20°C to +40°C |
| Storage Temperature |
-20°C to +60°C |
| LED Lifetime |
≥100,000 Hours |
| Certifications |
CE, FCC, RoHS, EMC |
