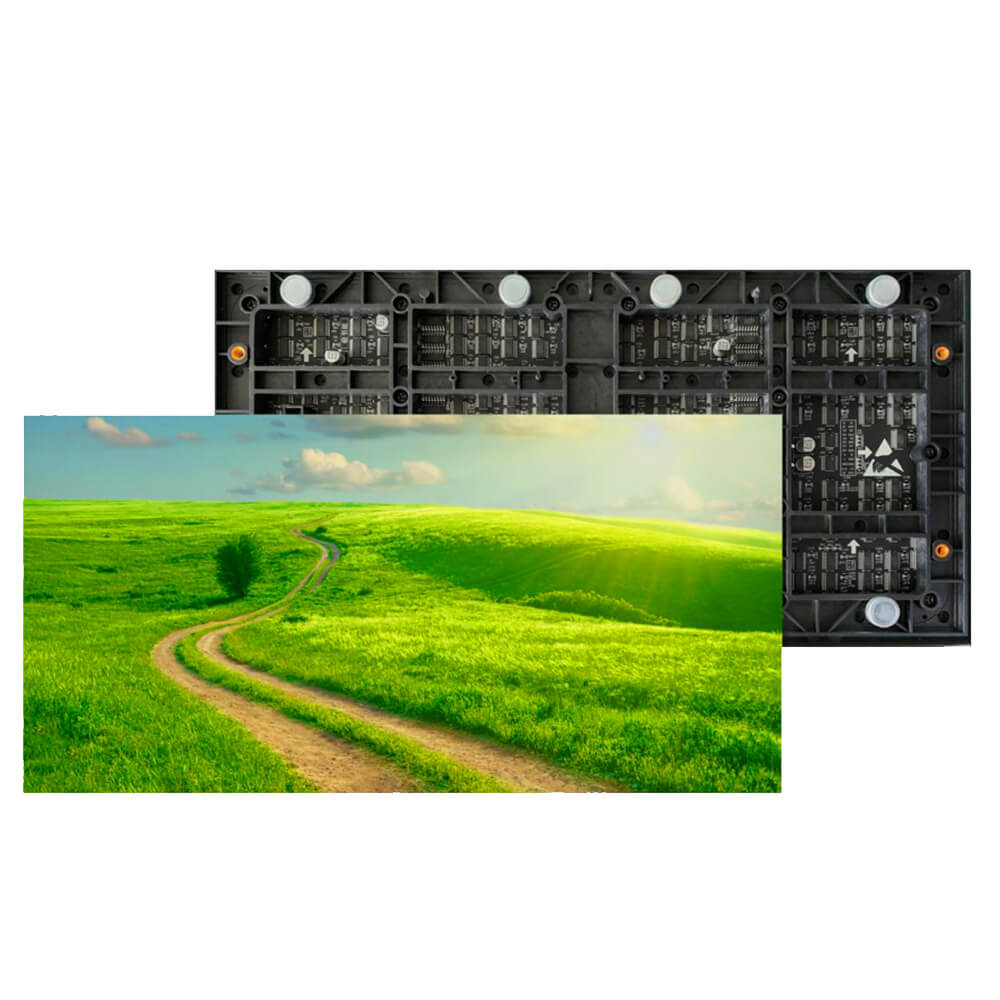

P1.0 GOB LED Panel | Ultra HD Fine Pitch Indoor

Description

The P1.0 GOB LED Panel is an ultra-fine-pitch indoor LED display. It delivers exceptional image quality and close viewing performance with long-term reliability.

This panel features advanced GOB (Glue-on-Board) protection technology. As a result, it resists impact, dust, moisture, and static electricity, while maintaining outstanding brightness and color accuracy.

With a 1.0mm pixel pitch, it delivers true Ultra HD image quality. Therefore, it’s ideal for conference rooms, command centers, TV studios, boardrooms, retail stores, and premium digital signage.

Typical P1.0 GOB displays use SMD0808 LEDs and offer a pixel density of 1,000,000 pixels. Additionally, they support a 3840Hz refresh rate for smooth, flicker-free visuals.

Technical Specifications
Specification Details
Product Name P1.0 GOB LED Panel
Pixel Pitch 1.0 mm
LED Technology SMD0808 with GOB (Glue-on-Board) Protection
Pixel Density 1,000,000 Pixels/m²
Module Size 320 × 160 mm
Module Resolution 320 × 160 Pixels
Cabinet Size 640 × 480 mm
Cabinet Material Die-Cast Aluminum
Brightness ≥500–600 nits
Refresh Rate ≥3840 Hz
Gray Scale 16 Bit
Contrast Ratio ≥6000:1
Viewing Angle 160° Horizontal / 160° Vertical
Color Temperature 3200K–9300K Adjustable
Input Voltage AC 110–240V
Maximum Power Consumption ≤600 W/m²
Average Power Consumption 180–220 W/m²
Protection Level Front GOB Protection (Dust, Moisture & Impact Resistant)
Operating Temperature -10°C to +40°C
Operating Humidity 10%–90% RH
LED Lifetime ≥100,000 Hours
Control System NovaStar, Colorlight, Huidu
Maintenance Front Service
