Description
The HUIDU HD-R716 Receiving Card is a high-performance LED display receiving card designed for professional indoor and outdoor LED display systems. It features 16 onboard HUB75E interfaces, dual Gigabit Ethernet ports, and supports static to 1/128 scan LED modules. With a maximum loading capacity of 327,680 pixels, the HD-R716 is compatible with conventional LED driver ICs and most PWM IC modules. Advanced features such as smart screen configuration, brightness correction, row and column adjustment, mapping, and flexible receiving card arrangement make it an excellent choice for high-resolution LED video walls, digital signage, rental LED displays, and commercial advertising screens
- HUIDU HD-R716 Receiving Card
- HD-R716 LED Receiving Card
- HUIDU R716 Specification
- HD-R716 HUB75E Receiving Card
- HUIDU LED Display Controller

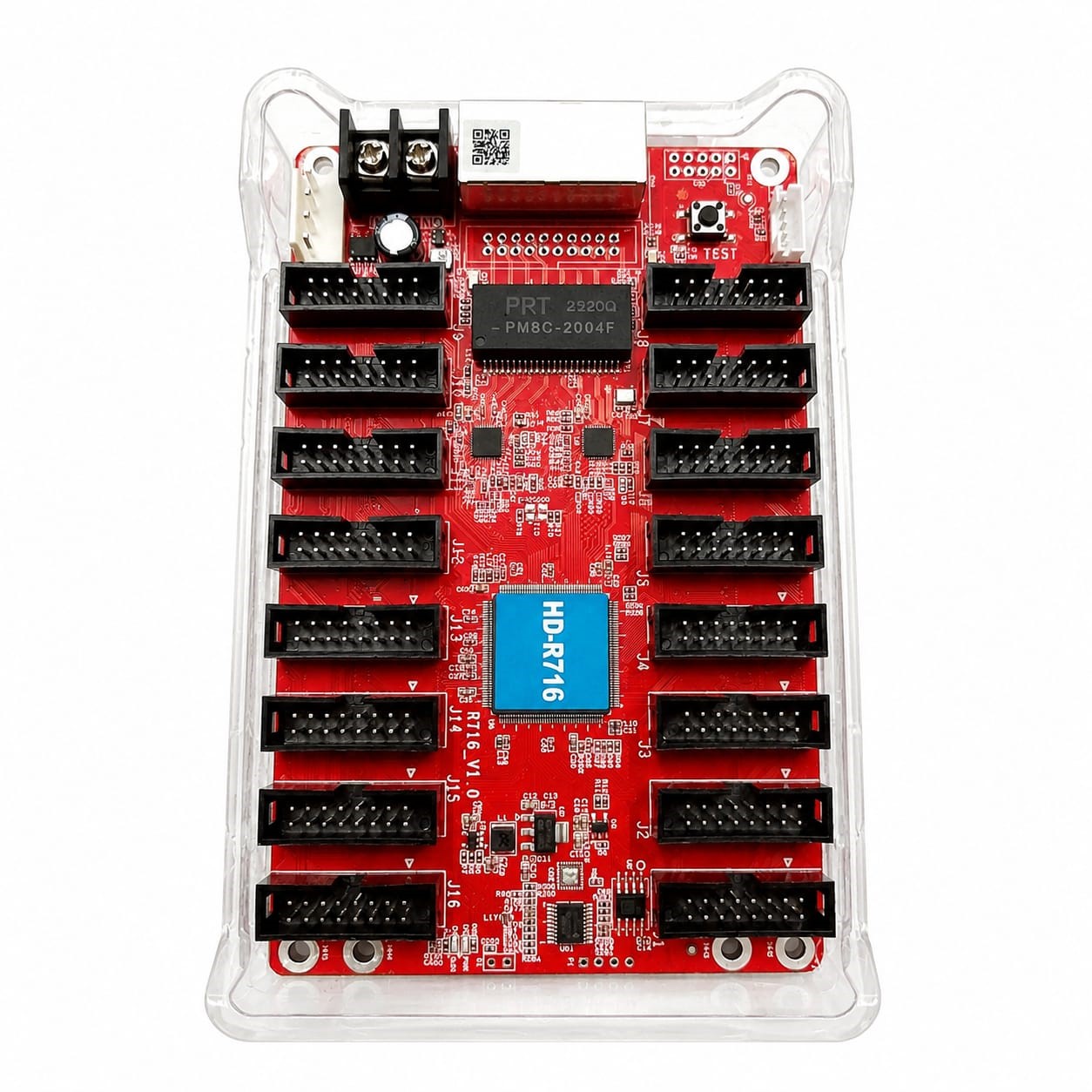

- HD-R716 PCB Front View
- HD-R716 Interface Layout
- HUIDU HD-R716 Datasheet
| Product Type |
LED Display Receiving Card |
| Ethernet Ports |
2 × Gigabit RJ45 |
| Communication |
Gigabit Ethernet |
| Maximum Loading Capacity |
Up to 327,680 pixels (512 × 640, depending on module configuration) |
| Scan Mode |
Static to 1/128 Scan |
| Supported Modules |
Conventional IC and most PWM IC LED modules |
| Input Voltage |
DC 4.0V–5.5V |
| Communication Distance |
Up to 80m using Cat5e/Cat6 cable |
| Features |
Smart configuration, row & column adjustment, brightness correction, mapping, arbitrary receiving card arrangement, screen test function |
